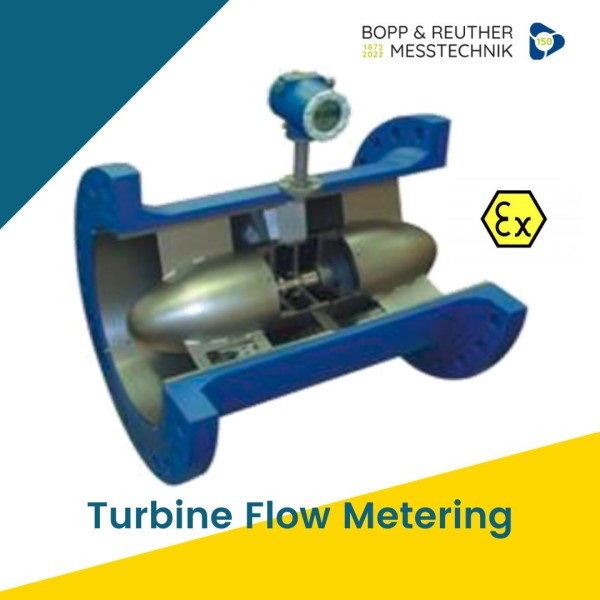

The Turbine Meter Series RQ from Bopp & Reuther Messtechnik for Oils, Acids, Solvents, Liquified Gases

• Accuracy better then ±0,15%

• Repeatability better than ±0,02%

• for high pressures and low viscosities

• Rim type rotor with higher pulse resolution

• Special designs (Cl. 2500, Hastelloy, Duplex, HART…)

• Extremely rugged design, suitable for LPG, bio fuels…

• Quality “made in Germany”

• Sustainability: decades of trouble free operation, easy to repair/maintain
• for Chemical - Petrochemical - Mineral Oil Industry - Loading Systems

PIC Engineering has been authorized by TENAGA NASIONAL BERHAD as Service Provider and Contractor.

PIC Engineering has been registerd by the Ministry of Finance MOF Malaysia in the field of Supply and Service.

What are the advantages of high accuracy oval gear flowmeters compared to Coriolis Mass Flow instruments?

Coriolis manufacturers often give the impression that their Mass Flow solution the only reliable high precision measurement technology for oil flow applications.

After comparing the specs and analyzing the facts we do disagree. In many cases Bopp & Reuther Oval Gear Flow Meters offer a better alternative comparing the reliability, profitibility, maintenance issues and the range of viscosity. Here an overview.

Oval Gear Meters from Bopp & Reuther Messtechnik for high accuracy volume measurement of liquids and liquid gases in loading applications of the chemical and petrochemical industry, petroleum industry and of food and beverages:

• high accuracy and repeatibilty: fiscal/custody transfer
• reliable, long lasting, low maintenance

• low pressure drop, no drift, no inlet/outlet required
• compact, simple installation and commisioning
• Large range of metered liquids, wide viscosity range


The APIS positioner is a final control element for control valves. The positioner with a  pneumatic membrane and piston single and double-acting actuators with linear and rotational movement allows quick and precise control of the actuator piston rod using an analog or digital control signal.

Horizonal Valve Test Benches for testing of safety, shut-off and control valves - made by EFCO in Germany:

• robust construction, easy operation, modular design

• clamping forces up to 600 tons - infinitely adjustable
• clamping device parts coated to protect against corrosion
• automatic proportional control of the clamping force for gentle clamping of the test pieces during the test procedure
• opt. automatic drive
• opt. Valve-Doc software for logging, recording, analyzing

Aplisens developed flanged diaphragm seals with an inbuilt two channel cleaning system for highly viscous process liquids.

The cleaning medium is supplied to the membrane surface via two channels placed inside the diaphragm seal.

This process prevents the dismounting of the seals from the application process. The seals can be used for Aplisens pressure transmitters.

Surface mount temperature sensors measure the surface temperature of an object. The temperature sensor is not connected to the direct process media but to an outside tank, pipe or assembly point. The thermocouple sensors are cost effective, have fast response times, broad temperature ranges and can fit almost anywhere.

Here we introduce the most common types:

Gasket - Bayonet - Tube Skin - Magnetic - Pipe Clamp, Right Angle Assemblies

Pitot Tube flowmeters measure the flow of

• liquids
• gases, flue gas
• saturated wet steam and super-heated dry steam.

They are reliable, long-lasting and accurate in rough conditions with up to 320 bar and 1200°C and low pressure loss. The are used for Chemical & Pharmaceutical processes, Steam Boiler & Biogas, flue gases, Cryogenics, high pressure & temperature applications and in Energy measurement.
