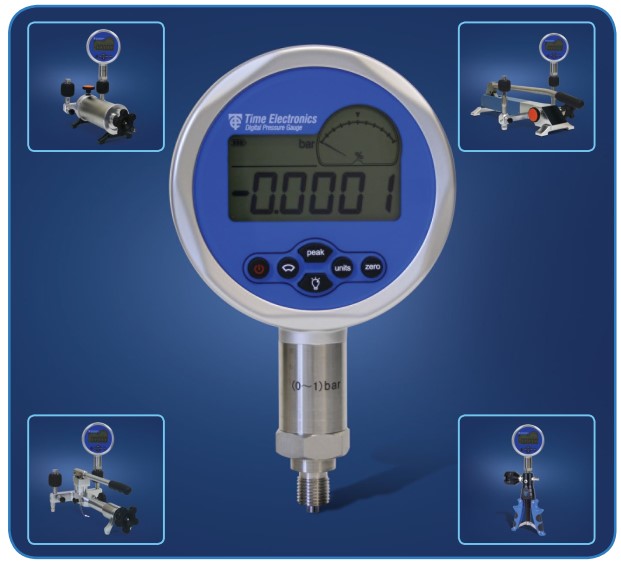

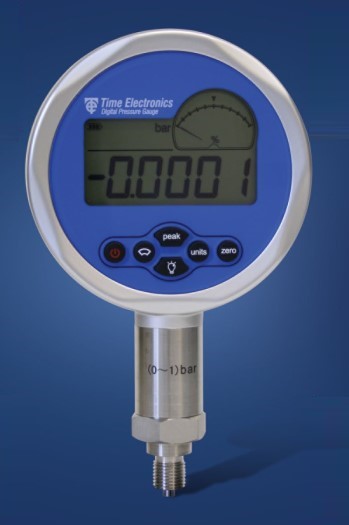

TEG Digital Pressure Gauges

The TEG range of digital pressure gauges provide high accuracy, resolution and stability. Their robust design means that each gauge can be used in critical environments where it is necessary to measure with accuracy, reproducibility, long-term stability and protection against dust. Gauges are available with accuracy up to 0.02% of full scale, with simple controls and various features for improved usability. An RS-232 port situated on the rear of the unit for software readback (EasyCal software from Time Electronics). Applications include lab and field pressure calibration when accompanied by a calibration pump for pressure generation.

• Pressure ranges up to 2500bar (37500psi)

• Gauge/Absolute/Differential/Compound models

• 0.02%, 0.05%, 0.1% or 0.2% FS accuracy

• Easy-to-read display with 5 digit resolution

• Unique self-protection capability technology

• 3 times per second measure speed

• Fully temperature compensated accuracy

• Long working period - low power consumption

• RS-232 interface on all model

Benchtop Pressure Calibration Pumps

Pneumatic benchtop pumps that are a comfortable and simple operation, providing an easy way to generate pressure in the lab. Each pump is a dual pressure source enabling them to be used as comparators for calibration with accompanying reference gauge.

• Easy to use with smooth pressure generation and high pressure stability
• Dual pressure source (double output manifold)
• Fine pressure adjustment

7191 - 0.95 bar vacuum up to 4 bar		7193 - 0.95 bar vacuum to 40 bar		7194 - 0.95 bar vacuum to 100bar
