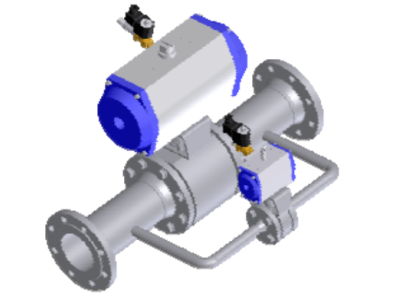

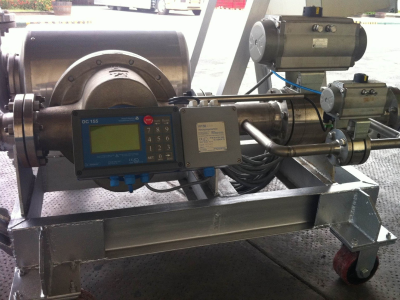

The electro-pneumatic dosing meter OKtronic combines the precise metering of approved oval wheel meter, the intelligent elektronic and modern valve technology to a robust and universal applicable metering unit.

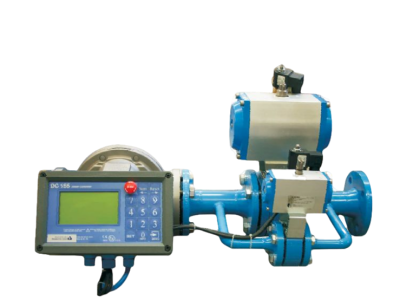

DOSING METER OK-TRONIC

• Oval wheel meter with high accuracy
• also available with Massflow Meter
• Flow dosing computer DC155 for comfortable handling
• 2 step shut down
• metering for high viscosity (up to 10000 mPa·s)
• measuring of non-conductive liquids
• no need of inlet or outlet section
• Menu driven configuration
• also available for Ex-zone

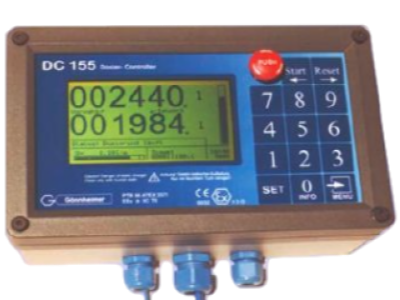

Dosing Controller DC 155 for hazardous area

• mounting inside of hazardous area zone 1
• Ex-protection EEX ib IIC T6
• Solid housing protection IP 65
• Universal dosing control functions:
  •  with digital solenoid valves
  • with proportional solenoid valve
  • with absolute level signal
  • with PID controlled flow
• Graphic LCD 204-128 Pixel

Ergonomics

With a comfortable keyboard, with large keys (22 x 22 mm), a clearly arranged display and the flexible functionality it is easy to realize simple as well as com- plex batch applications directly in hazardous area, without huge wiring expense to a e.g. panel room in safe area.

Simple remote control
It is possible to realize a remote control for the basic functions "START", "STOP", "RESET"

Process monitoring
The DC155 has a comfortable malfunction and disturbance monitoring system to monitor the sensor wiring and the flow.
To avoid wrong warnings, it is possible to turn off the monitoring for a programmable delay time at the start up phase. This is also possible for over or under-run of limit values.

Analog output
The analog output of the DC155 has a 14 bit resolution and it can drive an impedance up to 600 W, respectively 1000 W, using the separate analog output supply option.

MODBUS interface
With the modbus interface it is possible to view process data (like actual filled amout, total amount, etc) on a DCS for instance.
